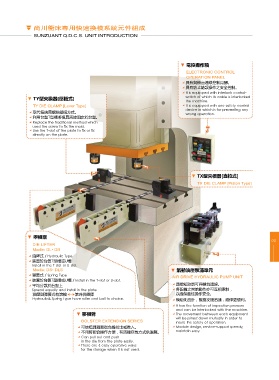

尚川冲床专用快速换模系统元件组成
SUNZUANT Q.D.C.S. UNIT INTRODUCTION

▼ 電控操作箱
ELECTRONIC CONTROL
OPERATION PANEL
◢ 具有與機台連線控制開關。
◢ 具有防止錯誤操作之安全控制。
◢ lt is equipped with interlock control-
▼ TY型夾模器[壓板式] switch of which its cable is interlocked
the machine.
TY DIE CLAMP [Lever Type] ◢ lt is equipped with one safety-control
device in which is for preventing any
◢ 取代傳統用螺絲鎖模方式。 wrong operation.
◢ 利用台盤T型槽將模具直接固定於台盤。
◢ Replace the traditional method which
used the screw to fix the mold.
◢ Use the T-slot of the plate to fix or fix
directly on the plate.

▼ TX型夾模器[直拉式]
TX DIE CLAMP [Piston Type]

▼ 舉模器
02
DIE LIFTER
Modle: DL• DB
◢ 油壓式 / Hydraulic Type
◢ 裝置於台盤T型槽或U槽
Install in the T-slot or U-slot.
Modle: DS• DLS ▼ 氣動油壓泵浦單元
◢ 彈簧式 / Spring Type AIR DRIVE HYDRAULIC PUMP UNIT
◢ 裝置於台盤T型槽或U槽 / Install in the T-slot or U-slot.
◢ 平均分散於台盤上 ◢ 具檢知功能可與機台連線。
Spread equally and install in the plate. ◢ 各配備之間的動作亦可互相牽制，
油壓與彈簧式有滾輪 滾珠供選擇 以確保最佳操作安全。
Hydraulic& Spring Type have roller and ball to choice. ◢ 模組化設計，服務支援迅速，維修更便利。
◢ It has the function of inspection pressure
and can be interlocked with the machine.
▼ 移模臂 ◢ The movement between each equipment
will be pined down mutually in order to
BOLSTER EXTENSION SERIES insure the safety of operation.
◢ 可使模具輕易從台盤拉出或推入。 ◢ Module design, service-support speedy,
◢ 不用時配合操作方便，有四種存放方式供選擇。 maintain easy.
◢ Can pull out and push
in the die from the plate easily.
◢ There are 4 easy operative ways
for the storage when it is not used.
